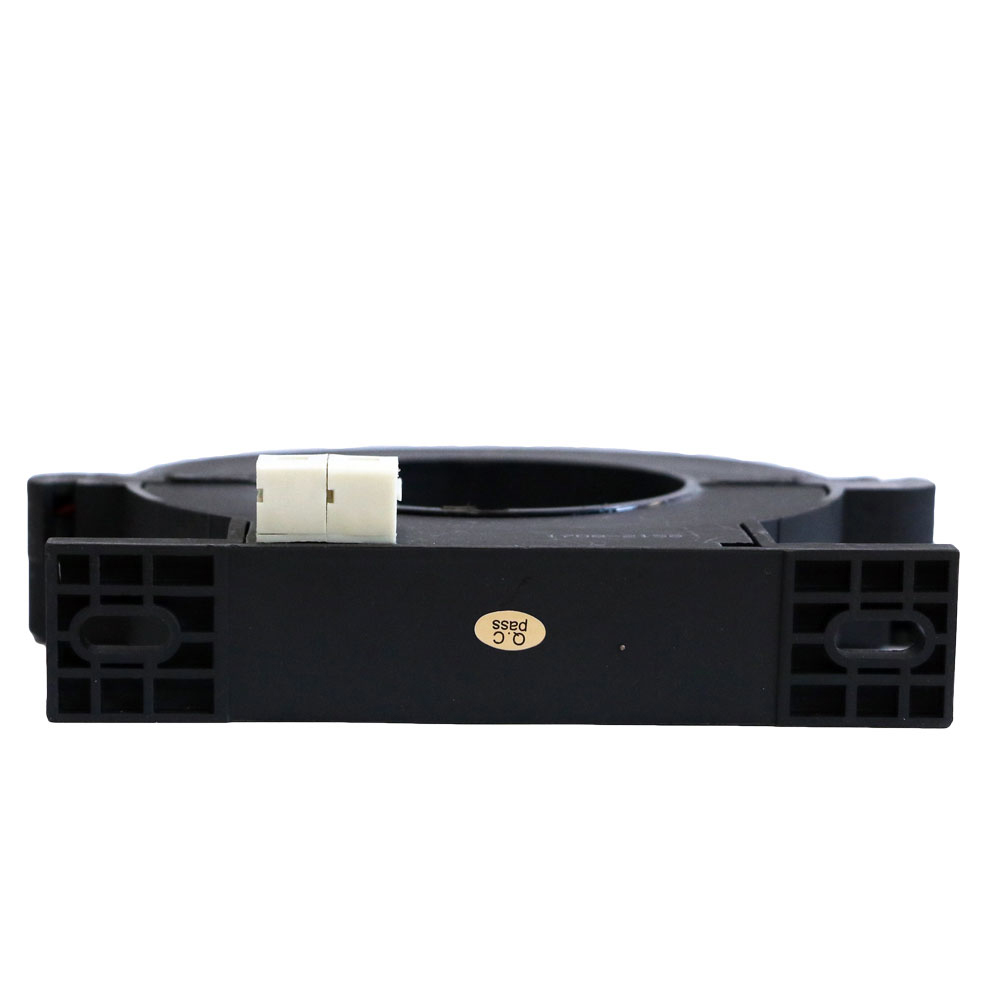

Current Transofrmer

• Primary current: 600A

Secondary current: 5A

 Accuracy class: 0.5

 Dimensions (L x W x D): 129mm×127mm×26mm

 Bore diameter: Bore diameter: φ65±0.5mm

1. The shell is made of high reliable flame retardant material to prevent high temperature aging.

2. Ingenious terminal design, to avoid the leakage of terminal, both safe and beautiful.

3. Using special magnetic core material, pure copper wire winding system, more stable performance, good product consistency.

4. Electrical strength: o breakdown, arc flying and dizziness(leakage current1mA) between primary winding and secondary winding in 3kV,50Hz and 60s.

5. Insulation resistance: ≥1000M between primary winding and secondary winding (DC500V)

Primary current600A
Secondary current5A
Accuracy class0.5
Dimensions (L x W x D)129mm×127mm×26mm
Bore diameterBore diameter: φ65±0.5mm
